Shuffle  EOG+fEMG Detector

Shuffle is a tethered bioelectricity detection device that includes dual-channel Electrooculogram (EOG) and dual-channel Facial Electromyography (fEMG). Through the self-developed high-sensitivity, low signal-to-noise ratio neural interface module to detect the user's bioelectrical signal in real time, the product can track human eye movement and recognize facial expressions, which can be used for human-computer interaction and physical medical scenario analysis.

Specification

Shape

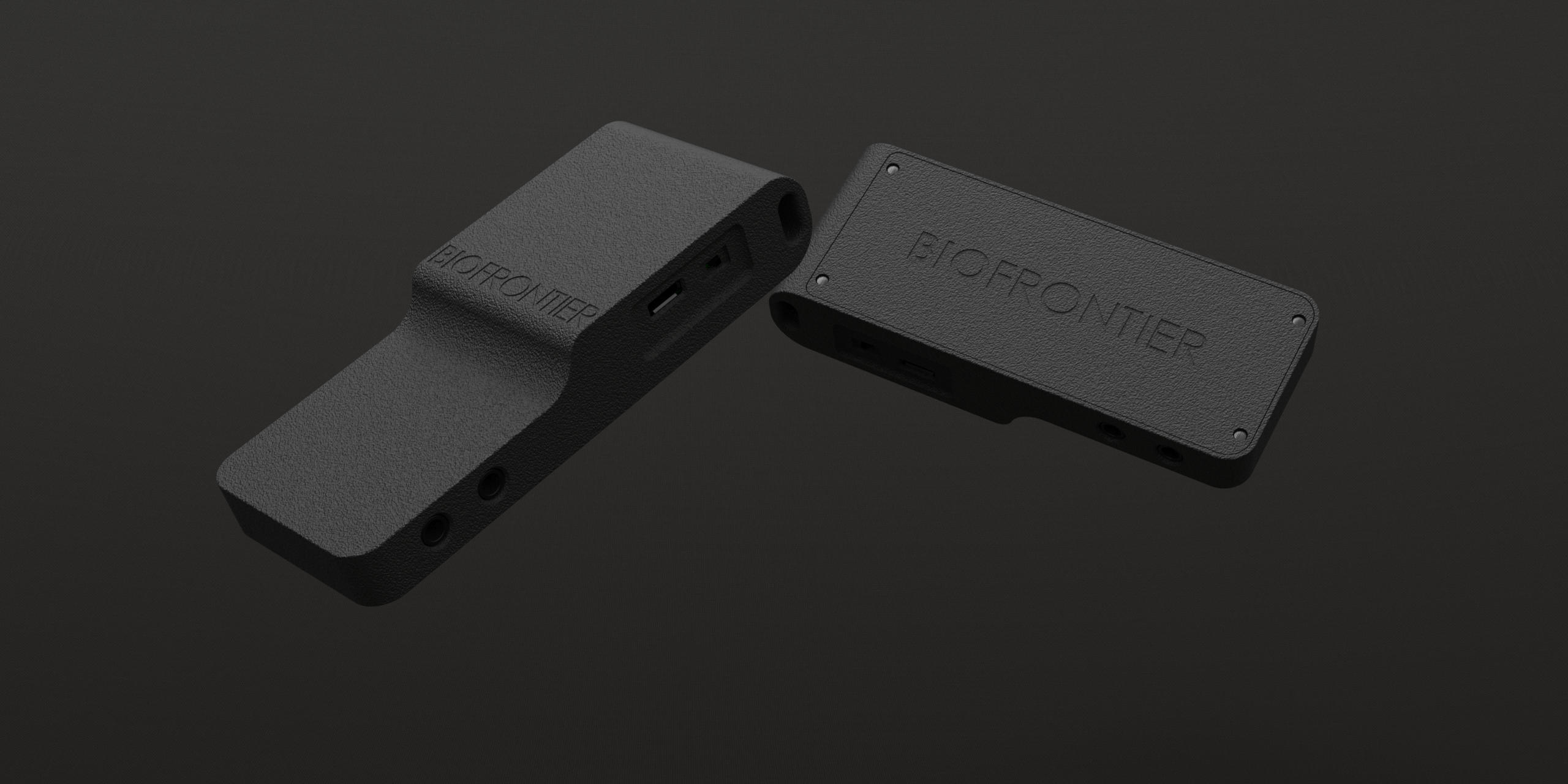

The Shuffle detector can be worn with a lanyard hanging around the neck, with a size of 103.5×41.5×10.5mm and a net weight of 47.5g. It is a highly integrated bioelectricity detection device with small and light features.

Bio-sensing

The detector focuses on the analysis of human facial movement state, including dual EOG channels (signal frequency band 3~16Hz), dual fEMG channels (signal frequency band 15~100Hz). The device can achieve a high sampling rate of 150~500Hz through a wired or wireless transmission path, and the resolution can reach 0.8μV.

Accessories

It is equipped with 4 bioelectric electrode connection cables and customized self-developed electrode stickers.

Tool

IOFRONTIER provides Toolbox Shuffle, a tool software that facilitates device testing and raw data collection.Download >
