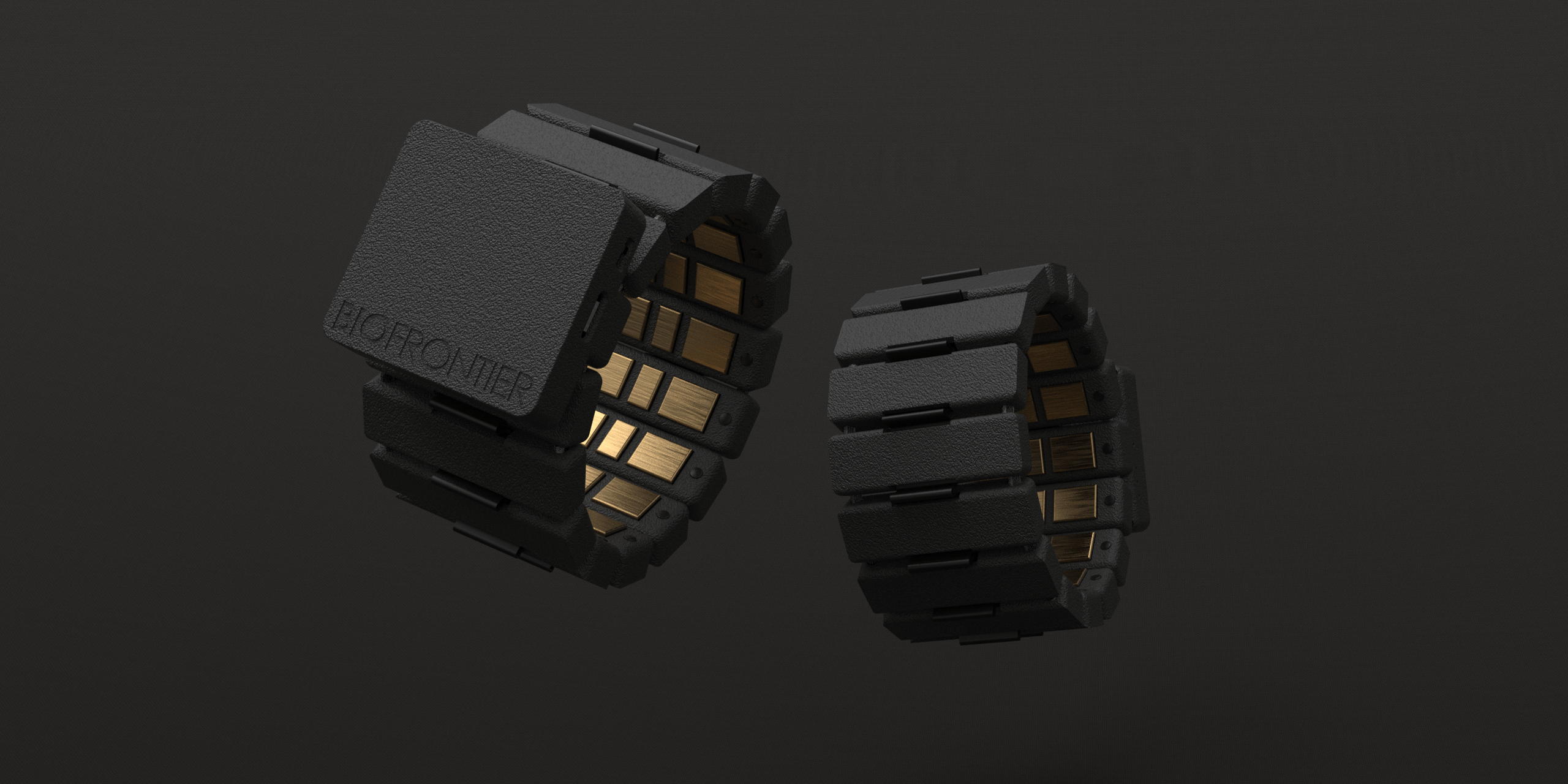

Gesture wristband is a 16-channel surface electromyography (sEMG) detection device. It uses BIOFRONTIER's self-developed high-sensitivity, low-signal-to-noise ratio neural interface module to detect the user's bioelectric signals in real time. The product can track the human arm motion state and be capable of gesture recognition, which can be used for human-computer interaction analysis as well as physical, medical and engineering scenario application.
The radius of the wristband is elastically expandable. The size range can be 73~108mm, and the net weight is 127g.
The wristband contains more neural interface modules (16 channels) to provide higher muscle resolution. The device can achieve a high sampling rate of 150~500Hz through a wired or wireless transmission path. The resolution can reach 0.8μV.
Built-in accelerometer range (±16g, resolution 0.0005g), gyroscope (range ±4000dps, resolution 0.12°/s), magnetometer (range ±2Gauss, resolution 6nT), output sampling rate up to 200Hz.
